product description:

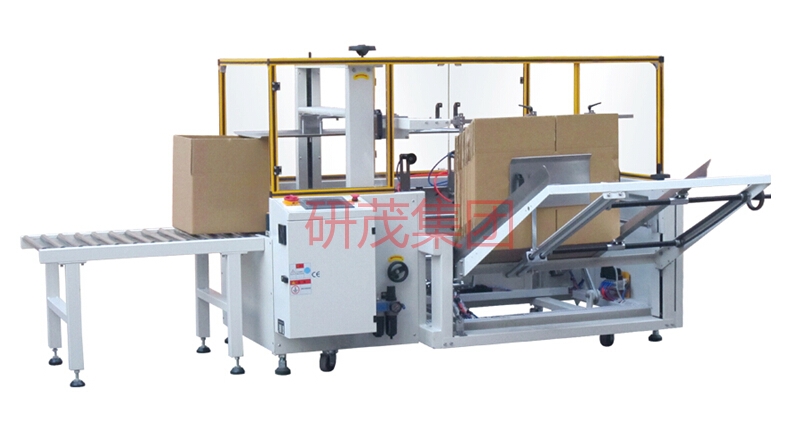

XKCE12 automatic unpacking machine automatically unpacking, forming, folding the bottom of the folds and under the completion of the next part of the tape paste, stacked cardboard box automatically open the bottom of the box according to a certain procedure, and sealed with tape delivery Special equipment for packing machine. Automatic open box machine is a large number of carton automatically open the box, automatically folded under the cover, automatically seal the bottom of the tape line equipment, the machine uses PLC + display control, greatly facilitate the operation and management, reduce production and labor intensity, automation The scale of production of essential equipment. Easy to operate, reduce packaging costs. Can be equipped with hot melt machine sealing.
Electrical configuration:
◆ PLC control: Germany "Siemens"
◆ Contactor: France "Schneider"
◆ Sensor: Germany "P + F"
◆ button switch: France "Schneider"
◆ man-machine interface: Germany "Siemens"
◆ Pneumatic components: Taiwan, "Ya Deke" cylinder / solenoid valve / magnetic switch, the German "FESTO" sucker and vacuum generator;
◆ Motor: Taiwan "Ruyang"
Machine parameters:
machine type | XKCE12 |
Power supply | 220V/380V 50/60HZ 300W |
Suitable carton | L:200-450 W:150-400 H:100-350mm |
Sealing speed | 8-12 bins / minute |
Tape width | 48/60mm |
Use gas source | 6-7kg |
Machine size | L2000*W1900*H1450mm |
|
|
