product manual:

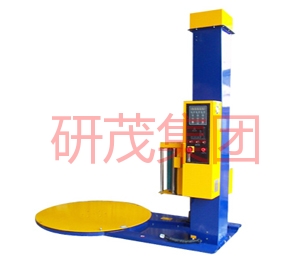

The series of film winding machine to LLDPE stretch film as the main material, the volume of large-weight machine or the whole product of the envelope, because the goods will not collapse and collapsed phenomenon, the goods can play a dust-proof, moisture-proof, anti- Broken role, widely used in printing, paper, chemicals, food, logistics and other industries, including the film package compact and strong, beautiful appearance.
main feature:
★ control system: PCB
★ photoelectric switch can automatically detect the object height
★ Turntable gently start and stop, adjustable speed
★ membrane frame adjustable speed
★ automatic or manual mode optional
★ machine size can be customized according to customer requirements
Technical Parameters:
Power, power 220V / 50Hz, 1.2KW
Turntable diameter 1500mm
The maximum packing height 2100mm
Turntable speed 1-10rpm / min
Membrane lifting rate of 0-90mm / sec
Bearing 2000kg
Volume (mm) L2500 * W1500 * H2500
Weight 800Kg
|
|
