Uses and characteristics:

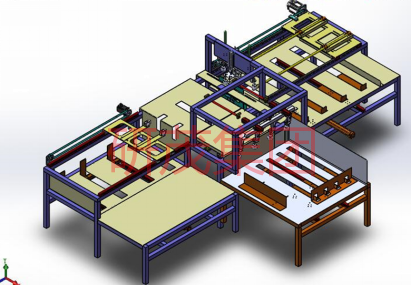

YM600 Woven Bag Fully automatic bag making machine is specially designed for making woven bags that need to be covered with pockets. The machine can automatically complete the inner and outer bags bagging process, the bag of traditional manual methods of production for a comprehensive technical upgrading, changing the backward production methods, to achieve a mechanized, automated production and intelligent management. Not only greatly reduced labor, saving more than 80% of manpower costs, but also reduce the labor intensity and improve the staff's work environment and employee happiness index.
Technical Parameters:
◆ equipment model: YM600
◆ adapt to the outer bag length (mm): 800mm-1200mm
◆ adapt to the outer bag width (mm): 500mm-650mm
◆ adapt to the bag thickness (mm): ≧ 0.02
◆ production capacity (Article / minute): 10-15 / min
◆ power supply: three-phase four-wire 380 / 220V 50HZ
◆ air pressure (MPA): ≧ 0.7
◆ compressed air consumption (m3 / h): 100
◆ total power (kw): 2
◆ host color: according to customer requirements
◆ Dimensions: (mm) length × width × height of about 6000 * 3000 * 1650 (according to customer bag requirements)
◆ machine weight (t): about 2
Process:
Bag storage bag - send bag to support bag organization - Open pocket - memory into the bag - take bag out of the bag - take bag.
The above process steps were completed continuously to ensure the continuity of the process and ensure the integrity of the bag processing.
Security and alarm:
The whole machine is not less than 3 emergency stop switches, which can stop or alarm the craft or safety. All parts that threaten personal safety and equipment safety are equipped with protective covers and warning signs.
|
|
