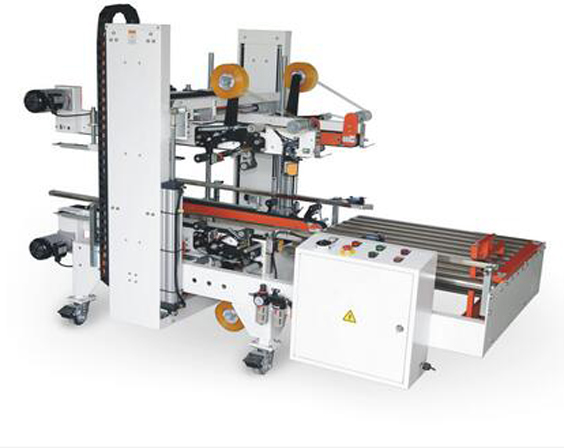

Machine Model: SHXK- FH500L
The smallest carton size: L340 * W200 * H180mm
The largest carton size: L500 * W500 * H500mm
Belt speed: 4-6 boxes / min
Mechanical size: L2110 * W1250 * H1500mm
Applicable power: 220 / 380V 50Hz
Applicable gas source: 6kgf / cm2, 150nl / min
Power consumption: 0.6KW
Applicable tape: W48,60,75mm choose one
Machine weight: 480kg
Machine features:
? The machine includes a 90 degree steering box mechanism;
? Automatic adjustment of width and height when changing specifications
? The front end can be equipped with a font sealing machine, the corners of the "workers" font sealing time to complete;
? Standard machine table height is 620mm;
? Sticking device structure is precise and firm, it runs smoothly and has long service life.
? Outside the standard specifications, non-standard customization is acceptable.
|
|
